What do 'flow errors' mean?

Angel Cheung
Angel Cheung
  • Updated

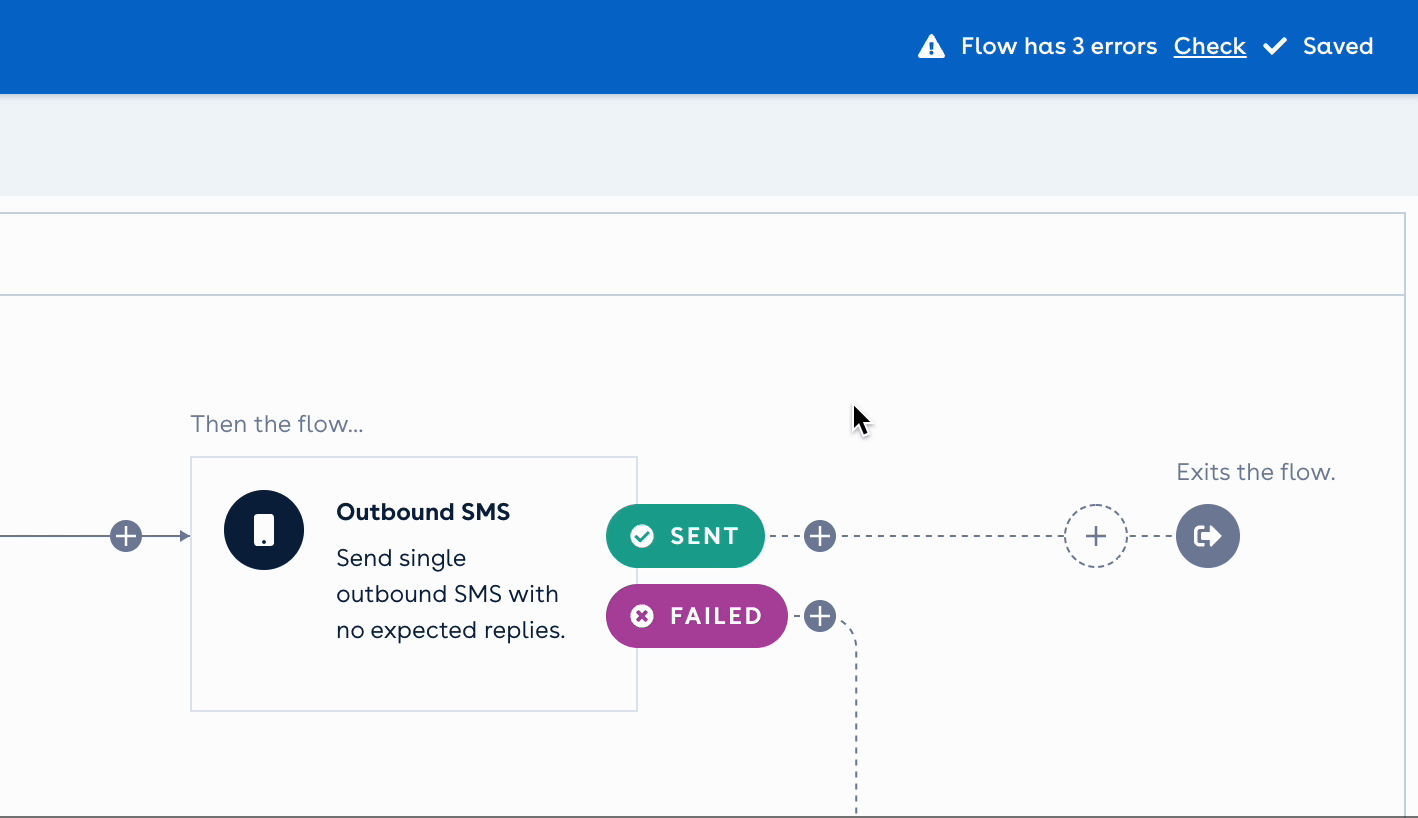

You can see if your flow has any errors by looking at the right side of the menubar. Errors are also highlighted within nodes on the canvas through a red outline and exclamation symbol.
Node Tab Field Error message What this means
All   Node name
Node name is a required field
 The name of the node cannot be empty.
Amazon Kinesis trigger Settings Integration
Integration is a required field
 The integration field cannot be empty.
Stream
Stream is a required field.
 The stream field cannot be empty. This is the name of the data stream in AWS.
Region
Region is a required field.
 The region field cannot be empty. This is the region the data stream lives in.
Advanced Node output key
Node Output Key is a required field

Inbound message Settings Intent key
body.intentKey is a required field
 Must be selected from the dropdown, cannot be empty.
Advanced Node output key
Node Output Key is a required field

Outbound SMS Outbound SMS Recipient
Recipient is a required field
 The recipient field cannot be empty.
Message body
Message body is a required field
 The message body cannot be empty.
Message body exceeds 1800 characters
 It’s advised to not exceed 1800 characters.
Message body contains GSM characters
 It’s advised to not use GSM characters.
Advanced Node output key
Node Output Key is a required field

Conversation Outbound SMS Recipient
Recipient is a required field
 The recipient field cannot be empty.
Message body
Message body is a required field
 The message body cannot be empty.
Message body exceeds 1800 characters
 It’s advised to not exceed 1800 characters.
Message body contains GSM characters
 It’s advised to not use GSM characters.
Expected responses Response path name
Intent Key is required for a message path
 The response path name cannot be empty.
Reply expiry
Reply expiry is a required field
 Must be a number greater than 0.
Advanced Node output key
Node Output Key is a required field

Workflow (Advanced) Settings WFL text area
WFL is a required field
 This must be filled in with valid WFL. There is no validation on the WFL at the moment, but it cannot be empty.
WFL Split (Advanced) Settings WFL text area
WFL is a required field
 This must be filled in with valid WFL. There is no validation on the WFL at the moment, but it cannot be empty.
Criteria split Settings Criteria builder
Field is required
 The field cannot be empty.
Operator is required
 Must be selected from the dropdown, cannot be empty.
